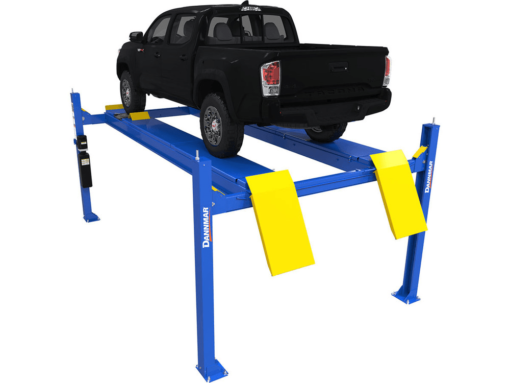

Dannmar’s 12,000 lb. capacity alignment lift is two lifts in one. That’s because it works as an alignment system and a car lift. Dannmar’s utilized industrial-strength slip plates and turn plates into the runways to provide optimal results. With this, the wheels respond to every adjustment with effectively no resistance.

This is the sturdy alignment lift for most shops, especially if you service large, low ground-clearance vehicles. Dannmar’s alignment system features front turn plates and rear slip plates built right into the runways. The wheels always respond to your adjustments with free-floating and no resistance.

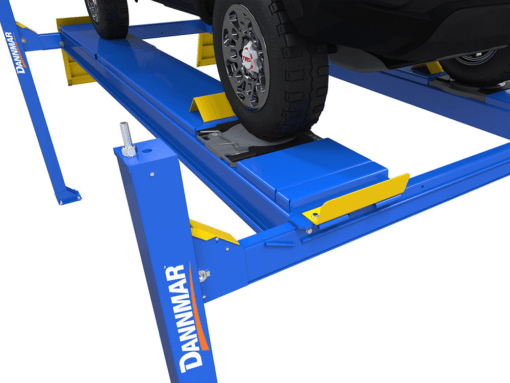

Dannmar’s D4-12A four-post alignment lift utilizes multi-caster slip plates in the rear and turn plates in the front that allow for very precise alignments. These turn plates also provide more clearance for equipment installations. The lift can otherwise be used for most repairs and vehicle or light to medium weight truck storage. With a lift like the Dannmar D4-12A, shops can free up extra floor space or increase parking capacity.

The Dannmar D4-12A alignment lift comes standard with robust 10.5” diameter dual-hub cable sheaves within the runway and cross tubes and 2.25” diameter sheave axles. A heavy-duty 1/2” diameter aircraft-quality stainless-steel lifting cable runs through each of the four columns. Designed for non-stop use and totally resistant to rubbing and other abrasions from weather, chemicals, and hydraulic oil. Aircraft-quality stainless steel and aluminum pneumatic cylinders provide years of trouble-free service. Other features include electric/hydraulic power, push button pneumatic lock release, adjustable height locking positions, an optional rolling bridge jack, and more.

Features

12,000 pound lifting capacity
CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
Heavy-duty turn plates and integrated rear slip-plates
Multi-position turn plate pockets
Automatic leveling system
Multiple auto-leveling locking positions
Runways include rail-kit for optional accessories
Electric / hydraulic power system
Single hydraulic cylinder mounted underneath runway
Fully enclosed lifting cables, safety locks, and sheaves
Internal “Anti-Sway” slider blocks in each column
Oversize sheaves and heavy-duty 1/2” aircraft cable
Rugged 1-3/8” roller axles and oversize self-lubricating cable sheaves
Multi-position safety locks in each column with push-button safety release
Runways adjust for different tread widths and feature non-skid surface
Optional 6,000-lb. capacity bridge jacks available

Specs

SKU#	5175318
Lifting Capacity	12,000 lbs. (5,443 kg)
A – Min. Runway Height	9.5″ (243 mm)
B – Max. Rise	68.75″ (1,746 mm)
C – Max. Lifting Height	79.5″ (2,019 mm)
D – Ramp Clearance* (Max. Rise)	49″ (1,245 mm)
E – Height of Columns	92″ (2,337 mm)
F – Drive-Thru Clearance	98” (2,482 mm)
G – Overall Width	127.5″ (3,239 mm)
H – Width Between Columns	115.75″ (2,940 mm)
I – Overall Length	233.5″ (2,940 mm)
J – Outside Columns	115.75″ (2,940 mm)
K – Width Between Runways	34.5″ (876 mm) or 41.5″ (1,054 mm)
L – Runway Centerline	54.5″ (1,384 mm) or 61.5″ (1,562 mm)
M – Outside Edge of Runways	74.5″ (1,892 mm) or 81.5″ (2,070 mm)
N – Runway Width	20″ (508 mm)
O – Length of Runways	194.75″ (4,947 mm)
Min. 4-Wheel Alignment	106” (2,692 mm)
Max. 4-Wheel Alignment	158.5” (4,026 mm)
Max. 2-Wheel Alignment	163.5” (4,153 mm)
Min. Wheelbase @ Rated Capacity	140” (3,556 mm)
Min. Wheelbase @ 75% Capacity	120” (3,048 mm)
Min. Wheelbase @ 50% Capacity	100” (2,540 mm)
Min. Wheelbase @ 25% Capacity	80” (2,032 mm)
Locking Positions	15 (spaced every 4” / 102 mm)
Time to Full Rise	60 seconds
Motor	220 VAC / 60 Hz / 1 Ph
