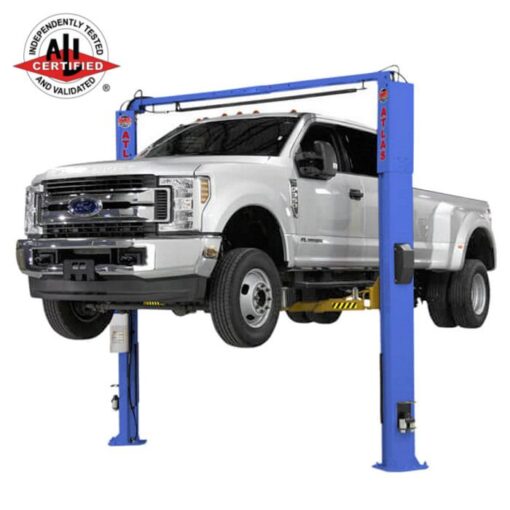

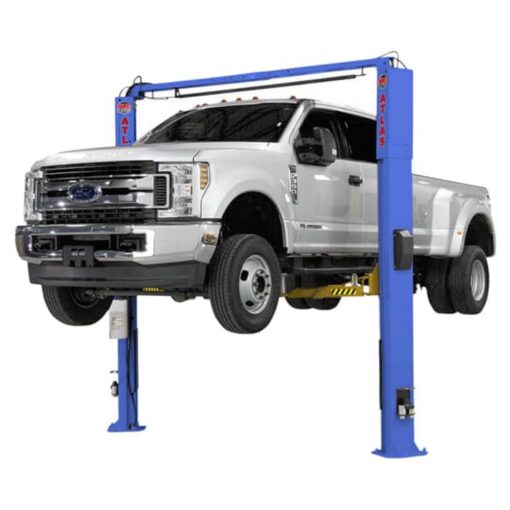

Atlas Platinum PVL-10 ALI Certified Two Post Lift

Features

• ALI Certified
• 10,000 lbs. Capacity
• Column design incorporates special Double S bends to increase column strength.
• Adjustable Height – 11′ 7-7/8″ or 11′ 3-7/8″
• Padded Carriages

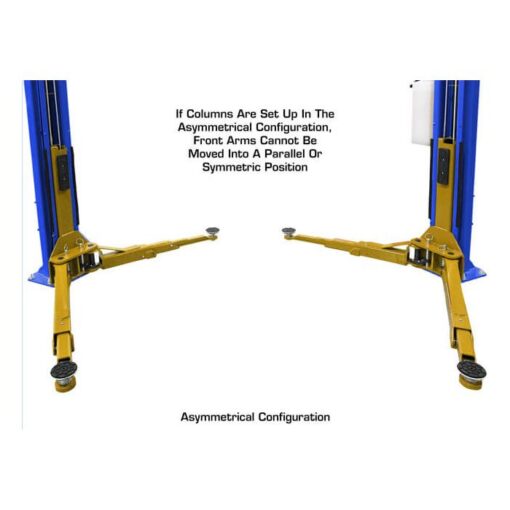

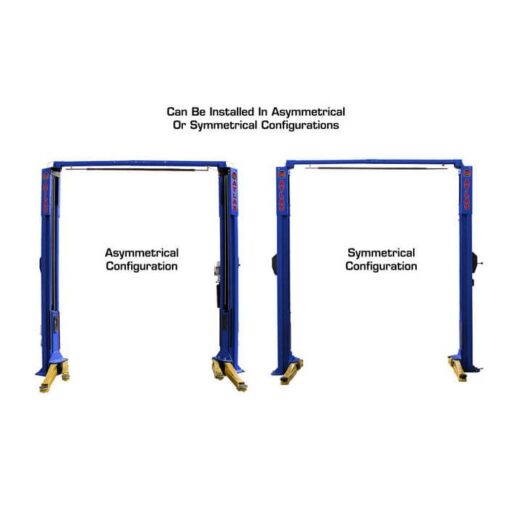

• Symmetric or Asymmetric columns

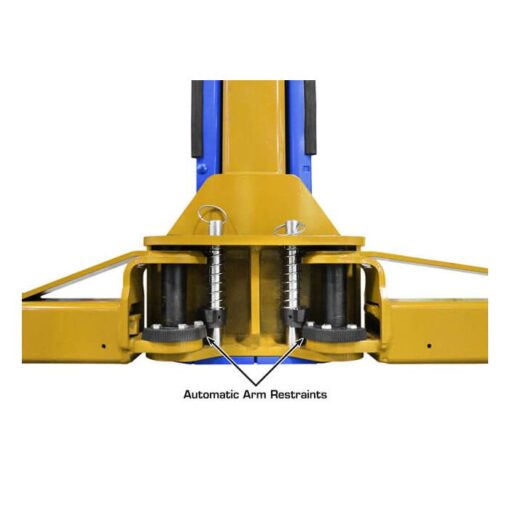

• Professional grade arm lock restraint system
• Higher quality powder coating
• Single point lock release
• Double screw-up adapter kit included
• Truck adapter set included
• Mounting Hardware Included

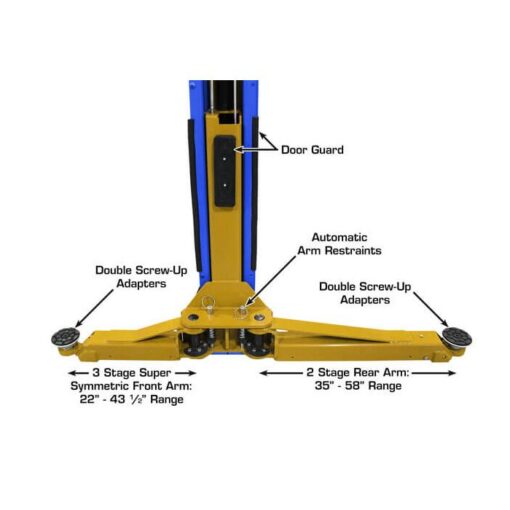

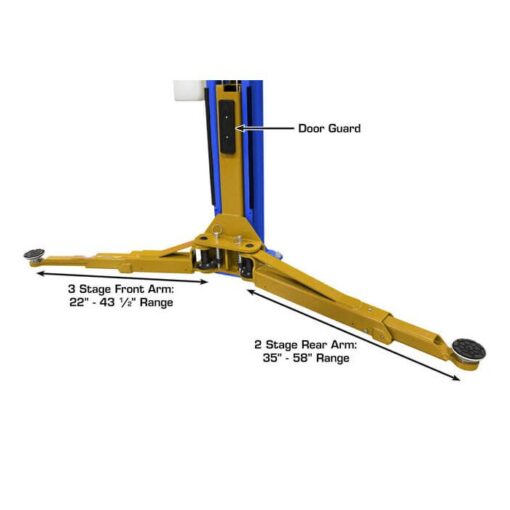

• 3 stage front arms and 2 stage rear arms offer more options

Specifications

• Capacity: 10,000 Lbs.
• Front Arm Length (Min): 22″
• Front Arm Length (Mid): 31-1/4″
• Front Arm Length (Max): 43-1/2″
• Rear Arm Length (Min): 35″
• Rear Arm Length (Max): 58″

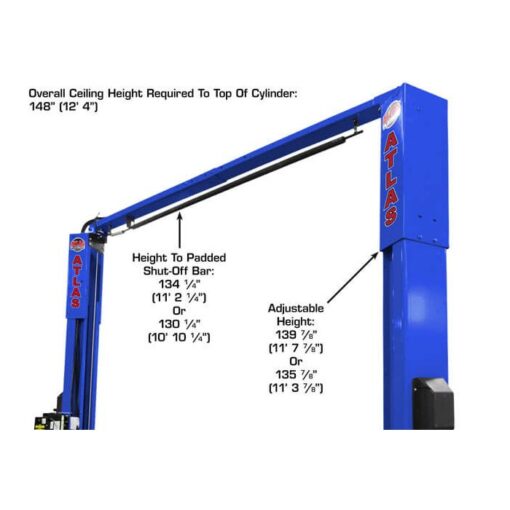

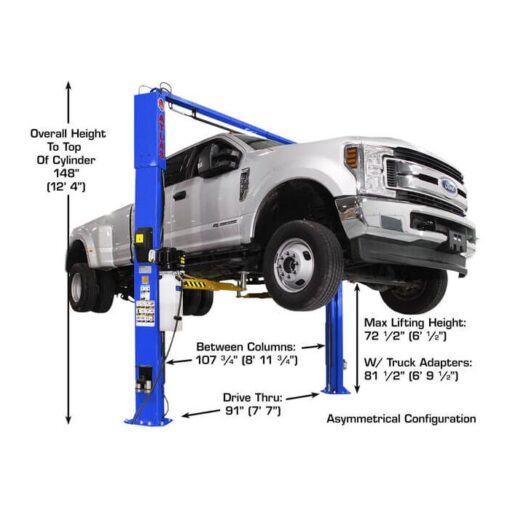

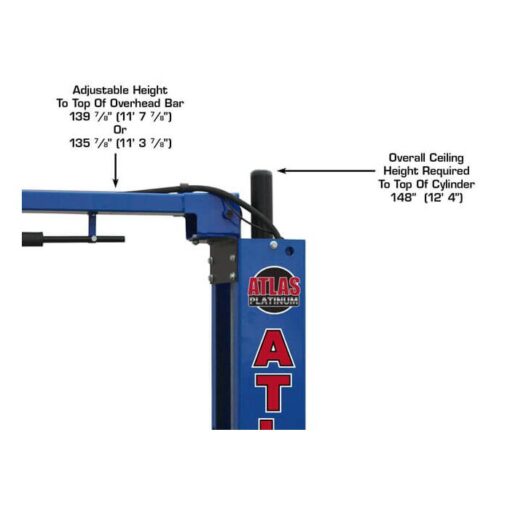

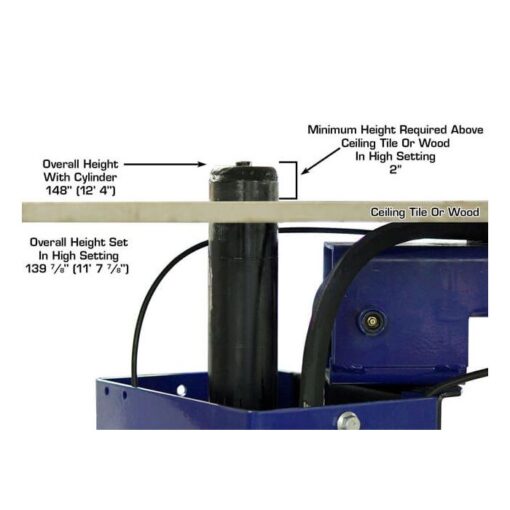

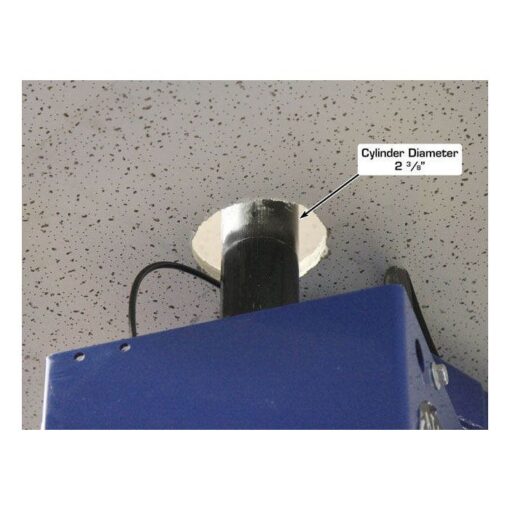

• Overall Height With Cylinder: 148″ (12′ 4″)
• Overall Height (HIGH): 139-7/8″ (11′ 7-7/8″)
• Overall Height (LOW): 135-7/8″ (11′ 3-7/8″) *Requires Spacers

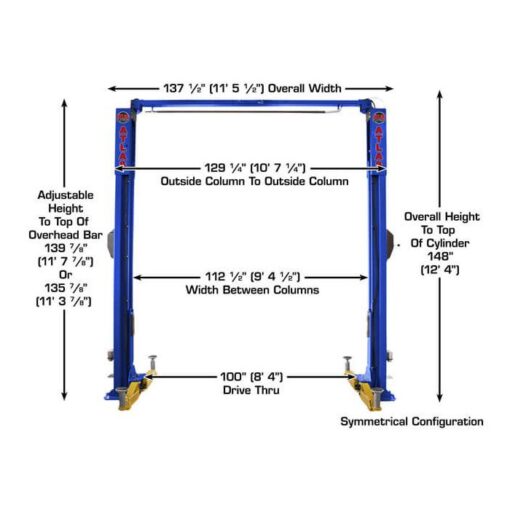

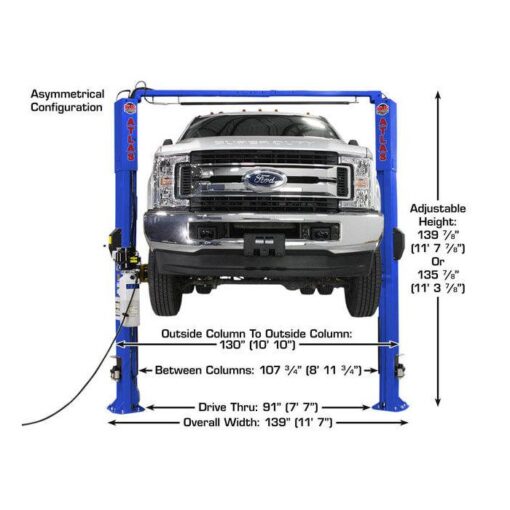

• Overall Width (Asymmetrical): 139″ (11′ 7″)
• Overall Width (Symmetrical): 137-1/2″ (11′ 5-1/2″)
• Outside Column to Outside Column (Asymmetrical): 130″ (10′ 10″)
• Outside Column to Outside Column (Symmetrical): 129-1/4″ (10′ 7″)

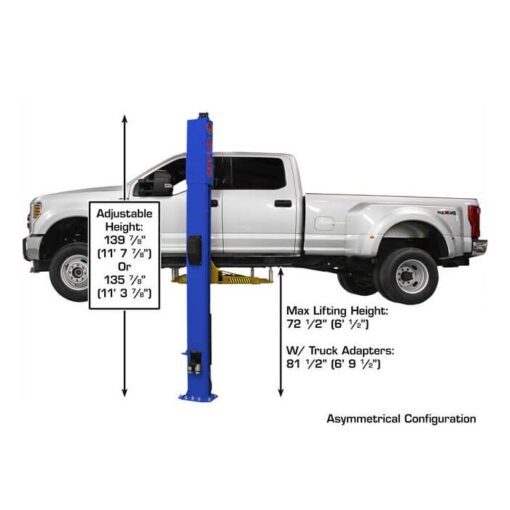

• Maximum Lift Height (with Adapters & Highest Pad): 81-1/2″ (6′ 9-1/2″)
• Maximum Lift Height (with Adapters & Lowest Pad): 79-1/4″ (6′ 7-1/4″)
• Maximum Lift Height (without Adapters & Highest Pad): 72-1/2″ (6′ 1/2″)
• Maximum Lift Height (without Adapters & Lowest Pad): 70″ (5′ 10″)
• Pad Height: 4″
• Adapter Heights: 3″ & 6″
• Minimum Arm Height: 4-1/2″
• Between Columns (Asymmetrical): 107-3/4″ (8′ 11-3/4″)
• Between Columns (Symmetrical): 112-1/2″ (9′ 4-1/2″)
• Column Size: 10-1/4″ x 7″
• Drive Through (Asymmetrical): 91″ (7′ 7″)
• Drive Through (Symmetrical): 99-1/2″ (8′ 3-1/2″)
• Base of Lift: 18″ x 15″

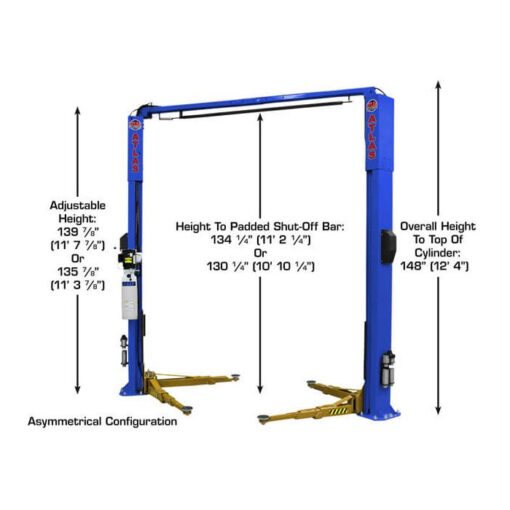

• Shut-Off Height (HIGH): 134-1/4″ (11′ 2-1/4″)
• Shut-Off Height (LOW): 130-1/4″ (10′ 10-1/4″) *Requires Spacers
• Cable: 0.315″ (8mm)
• Column Thickness of Steel: 6mm / Double S Column Design Increases Column Strength
• Carriage Thickness of Steel (Frame): 8mm
• Carriage Thickness of Steel (Yoke): 16mm
• Arms Thickness of Steel (Frame): 6mm
• Arms Thickness of Steel (Telescopic Arm): 8mm
• Shipping Dimensions: 38″ x 22-1/2″ x 115″
• Shipping Weight: 1850 lbs.
• Warranty: 5 Years Structure, 2 Years Hydraulic Power Units & Cylinders, No Labor

Requires a minimum of 4″ of concrete with 3000 psi.
All lifts come with a step by step instruction manual.

5 Year Structural & 2 Year Hydraulic Warranty
Atlas Platinum Series Two-Post Lifts are warranted for five (5) years on structural components and two (2) years on the hydraulic system, power unit and cylinders effective from date of invoice. Wear items carry a 90-day warranty. Structural components are considered the Carriage, Columns, Yokes, Arms, Runways, Plungers, etc. Hydraulic components are cylinders, hoses, and fittings. Cables, sheaves, latches and controls are considered wear items.

This LIMITED warranty policy does not include a labor warranty.

NOTE: ALL WARRANTY CLAIMS MUST BE PRE-APPROVED BY THE MANUFACTURER TO BE VALID.

The Manufacturer shall repair or replace at their option for this period those parts returned to the factory freight prepaid, which prove after inspection to be defective. This warranty will not apply unless the product is installed, used and maintained in accordance with the Manufacturers installation, operation and maintenance instructions.

This warranty applies to the ORIGINAL purchaser only, and is non-transferable. The warranty covers the products to be free of defects in material and workmanship but, does not cover normal maintenance or adjustments, damage or malfunction caused by: improper handling, installation, abuse, misuse, negligence, carelessness of operation or normal wear and tear. In addition, this warranty does not cover equipment when repairs or alterations have been made or attempted to the Manufacturer’s products.

CE Tested And Approved
The letters ‘CE’ appear on many products that are traded in the European Economic Area (EEA). There are 27 member states of the EU and European Free Trade Association. The CE marking attests the verification by a manufacturer that products meet EU safety requirements. It is the manufacturer’s responsibility to carry out the conformity assessment. Conformity assessment testing was performed by CCQS UK Ltd. www.ccqs.co.uk

This Atlas lift (structure and hydraulics) has been tested and has passed the CE conformity requirements. Atlas lifts sold in the USA and Canada use a different power unit than those required by CE. CE requires an electrical control box (with solenoids) that actuates the hydraulic power unit.

Electric power units supplied with above ground lifts in the USA and Canada do not require the electronic control box; therefore the power unit was not tested to CE approval requirements. If you have questions relating to the power unit supplied with your lift, please discuss these with your salesman.

If you are customer from the EU or other foreign county that requires CE approval, please contact our sales office to see how we can help.

Electrical Requirements
The electric motor for the power unit requires 220 Volt (single phase) 60 Hz (+/- 5%, so 209-231 volts). We recommend using at least a 10 gauge (grounded) wire from the electrical panel. The power unit may or may not have a short pigtail (no plug) that can be wired to either an optional quick disconnect box (mounted on the lift column) or to a male/female plug combination. A 30 amp breaker is required.

Overhead Configuration
The overhead bar configuration leaves the floor area between the columns open, and allows the operator to easily roll a transmission jack or a tool box under the car. The padded shut-off bar located below the cross beam prevents the top of the vehicle from being damaged by hitting the cross beam. The padded bar, which contacted automatically shuts off the motor on the power unit to prevent the vehicle from being lifted.
