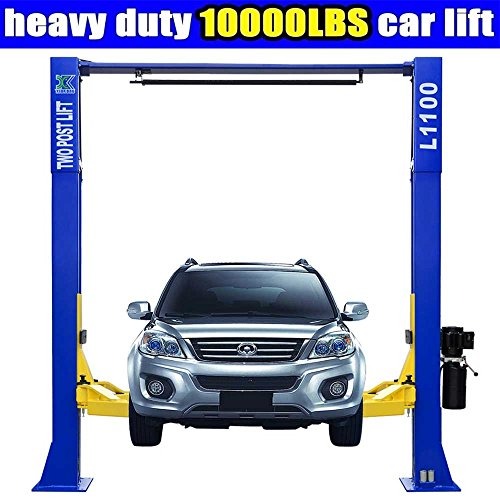

10,000 LBS CAR LIFT L1100 2 POST OVERHEAD CAR AUTO TRUCK HOIST 220V OR 110V

2 POST CAR LIFT L1100 AUTO TRUCK HOIST 10,000 LB OVERHEAD CLEAR FLOOR 220V

Auto Car Lift  L1100 220V  60HZ  1PH   3HP MOTOR features Symmetrical Arm Assembly with Straight Front / Rear 2 Stage reach from 30 1/4″ to 49 1/5″ and Equal length of front and rear arm design Drop-in type lifting pads and truck adapters are included.

FEATURES:

Safety Mechanism:

220v Or 110v 60hz 1ph 3hp Motor

Auto Car Lift L 1100

symmetrical Arm Assembly:

Straight Front / Rear 2 Stage Reach From 30 1/4″ To 49 1/5″

Equal Length Of Front And Rear Arm Design

Drop-in Type Lifting Pads And Truck Adapters Included

Safety Mechanism:

Double Point Safety Lock Release
•automatic Arm Lock Restraints
•relief Valve Built In Power Pump To Prevent Overloading
•door Guards Protection Rubber
•up-limit Switch To Protect Cylinders Working Stroke Used In Safe Length Scope
•heavy Duty 5/16″ Diameter Cable And 4.56″ Pulley Reduce High Stress On Synchronization Process And Increase Cable Life
•stiffened Base Plate 5/8″ Thickness
•ultra High Molecular Self Lubricating Nylon Slider Ensures Carriage Smooth Moving Up And Down
•anchor Bolts/mounting Hardware Included

Control System
•lifting Operation By Pressing “Up” Button On Motor
•manual Lowering Operation By Pressing Lever
•relief Valve Built In Power Pump To Prevent Overloading
•1 Sets Truck Adapters Included
•lifting Capacity: 10,000 Lbs
•the Overall Height 145-5/8″
•the Overall Width 133-1/4″
•column Width 10.62″
•base Width 18.89″
•column Thickness Of Steel 3/16″
•carriage Thickness Of Steel 15/64″
•arms Thickness Of Steel 15/64″
•front Arm 30.7″ To 48″
•rear Arm 30.7″ To 48″
•min Pad Height: 3-7/8″
•lift Height Max: 78-7/8″
•drive-thru Width Clearance: 100″
•time To Full Rise: 20-60 Sec
•shipping Weight: 1460 Lbs

Site Selection

Before Installing Your Auto Lift, Check The Following:

Lift Location: Always Use Architect’s Plans When Available. Check Layout Dimension Against Floor Plan Requirements Making Sure Adequate Space Is Available. Your Lift Requires A 220v Or 110v, 30amp, Single Phase, Grounded Electrical Source. There Should Be Room Enough To Operate The Lift In A Safe Manner And Without Restrictions.

Overhead Area: The Area Where The Lift Will Be Located Should Be Free Of Overhead Obstructions Such As Heaters, Building Supports, Electrical Lines, Doors, Lights, Etc.

Floor Area: Visually Inspect The Site Where The Lift Is To Be Installed And Check For Cracked Or Defective Concrete.

Floor Requirements

A Level Floor Is Suggested For Proper Installation And Level Lifting. Small Differences In Floor Slopes May Be Compensated For By Proper Shimming. If A Floor Is Of Questionable Slope, Consider A Survey Of The Site And/or The Possibility Of Pouring A New Level Concrete Slab.

Concrete Specifications

All Models Must Be Installed On 3,000 Psi Reinforced Concrete Only. Additional Concrete Requirements Will Vary By Lift.

8,500 Lbs – 10,000 Lbs Lifts: 4″ Minimum Thickness

11,000 Lbs – 15,000 Lbs Lifts: 6″ Minimum Thickness

Warranty:

12 Months Warranty On All Metal Parts, Pneumatic Parts, Electrical Parts And Motors! When You Choose Us, You Will Get The Best Warranty.

Most Of The Sellers Don’t Provide Or Only Provide Warranty For Those Parts For 3 Or 6 Months, 1 Year At Most. Please Compare With Others Before You Make The Decision. Get Into Our Shop And You Will See The Details Of Terms And Conditions, Especially The Best Warranty!

Factory Defective Items:

Refunds Issued For Defective Items Will Be For The Full Purchase Price Of The Item.

If A Replacement Is Requested, There Will Be No Additional Cost For Shipping The Replacement If Your Item Is Found To Be Defective

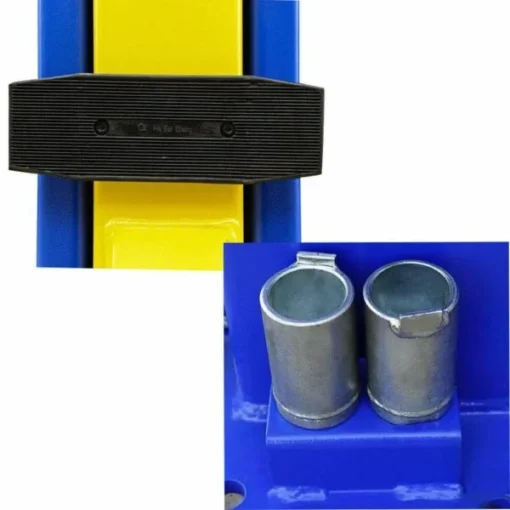

Adjustable Pads And Truck Adapters Are Inluded

Shipping:

– We Only Ship Inside The Usa 48 States (Free To Commercial Address Only).
